Coaxial cables used at low temperatures, in addition to the electrical properties of the cable, but also consider the cable's low temperature resistance, vacuum compatibility, heat leakage, flexibility, spatial limitations, etc., Teflon material at low temperatures to maintain good flexibility and vacuum compatibility, so the insulating material using Teflon's very fine coaxial cables are widely used at low temperatures to carry out precision measurements at low frequency or direct current

Features:
- Room temperature range: 10mK-450K
- Good low temperature flexibility
- Good vacuum compatibility
- Low leakage for precision DC measurements
- Good low frequency measurement compatibility

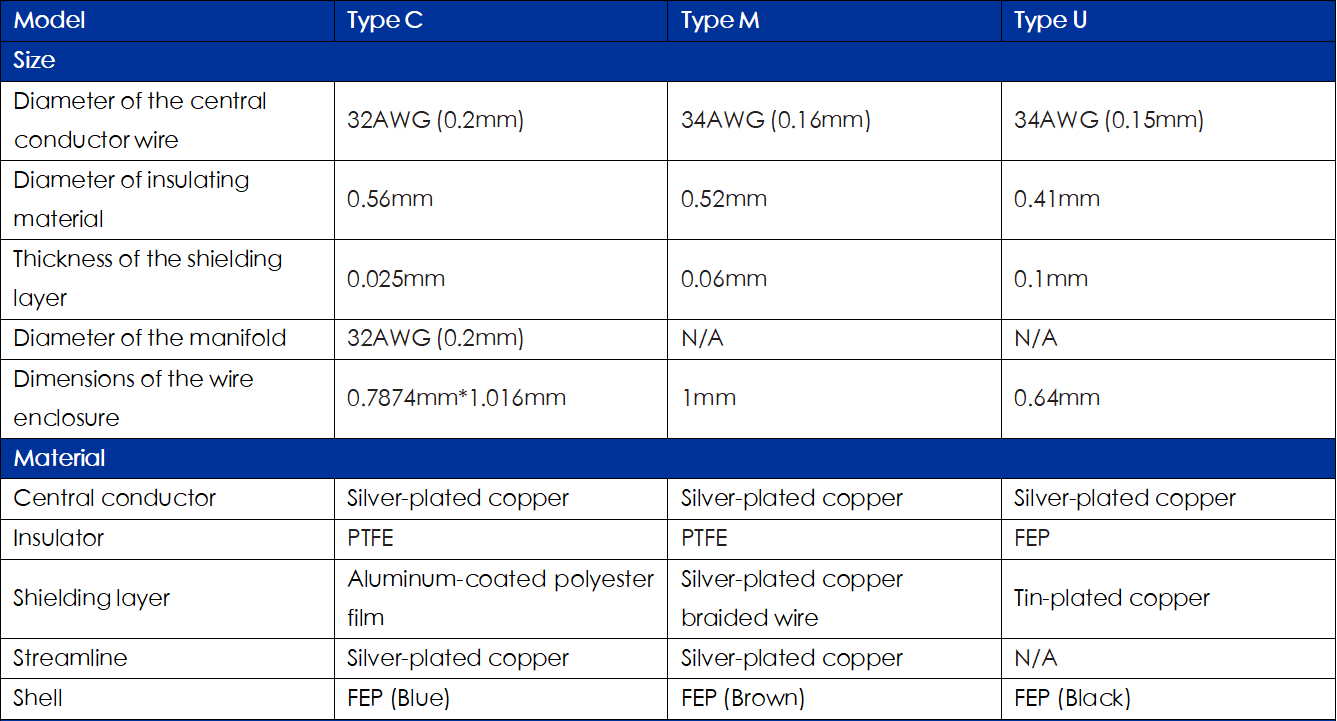

Model Category
Type C
Extremely fine, low-temperature solid coaxial cable with drain wire, a feature of this coaxial cable:
- 32AWG solid conductors for durability and ease of connection.
- Can use drain wire solid tinned copper wire, can be effectively grounded, strong and durable
- Effective removal of electrical noise
- Avoid chemical reaction between core and shield due to heat and electricity, long service life of the wire.
- Frequency of use: 3G

Type U
Ultra-fine cryogenic solid coaxial cable with braided tinned copper shield:
- Outside diameter of the wire is 0.8mm suitable for space-compact cryogenic systems.
- 36 AWG solid conductor, stronger and more durable than multi-stranded conductors, easy to connect.
- Frequency: 6G
